Use characteristic:

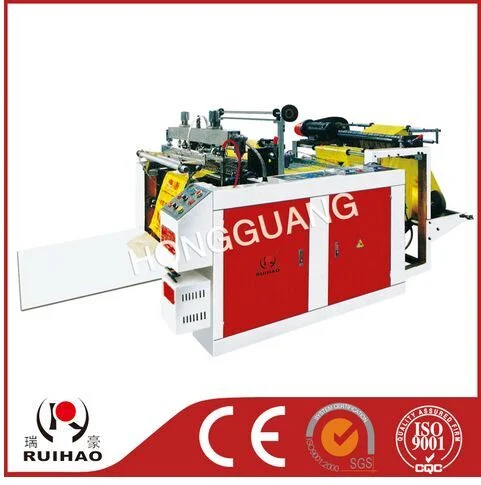

This machine is suitable for making barrel-type platic vest bags of natural colour and colour-printed bound plastic vest bags.It adopts advanced photoelectric eyes tracking which makes the printing pattern position be accurate without error, the sealing synchronize with the heat-cutting without any pulling force and the sealed bottom be film and beautiful.Equipped with variable frequency speed regulating motor,it has many automatic protection function such as energy-saving, overload,overvoltage and overcurrent,etc. And equipped with automatic counting device,it can arbitrarily set the binding quantity and can automatically discharge and reset after the bags are piled to the set quantity.
Main technical parameter:
This machine is suitable for making barrel-type platic vest bags of natural colour and colour-printed bound plastic vest bags.It adopts advanced photoelectric eyes tracking which makes the printing pattern position be accurate without error, the sealing synchronize with the heat-cutting without any pulling force and the sealed bottom be film and beautiful.Equipped with variable frequency speed regulating motor,it has many automatic protection function such as energy-saving, overload,overvoltage and overcurrent,etc. And equipped with automatic counting device,it can arbitrarily set the binding quantity and can automatically discharge and reset after the bags are piled to the set quantity.
Main technical parameter:
Model | 500 | 700 |
Max.width of bag-making (mm) | 500 | 700 |
Max.length of bag-making(mm) | 1000 | 1000 |
bag-making speed (pc/min) | 40-120 | 40-120 |
Main engine power (kw) | 1.1 | 1.5 |
Engine weight (kg) | 800 | 900 |
outline diameter(L*W*H) mm | 2600*1150*1500 | 2600*1350*1350 |
